AMVIC Ireland

AMVIC Insulated Concrete Forms (ICF)
Amvic Ireland's ICF system is a fast and cost-effective construction method for energy-efficient, high-performance homes and buildings.

It is used all over Ireland and the UK for large-scale housing and apartment developments, one-off housing, extensions, healthcare, commercial and industrial units.

The Amvic ICF system is certified by NSAI IAB and The BBA for buildings up to 6 stories.

Amvic Ireland is an Irish-owned company that has been operating in Ireland for over 17 years. It has production facilities in Dublin and a new, state-of-the-art plant in Longford.

Building With AMCIV ICF

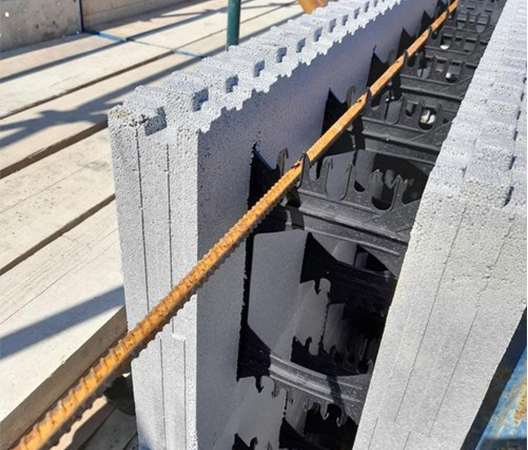

The Amvic ICF system consists of modular interlocking, flame-retardant expanded polystyrene (EPS) building blocks (graphite enhanced) for permanent formwork for constructing in-situ concrete walls.

Each block or form is based on two EPS panels with recycled polypropylene connectors moulded into the polystyrene panels and spaced 150/200mm vertically.

The surfaces of the forms are marked with lines showing the location of the connectors.

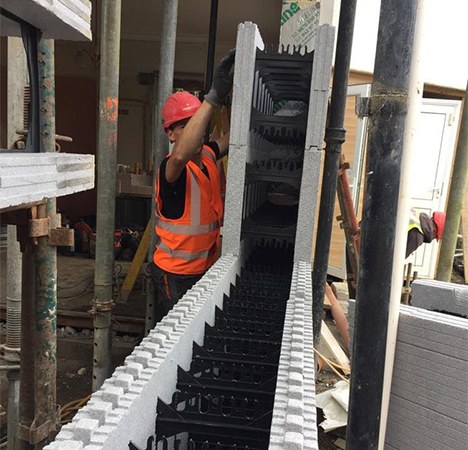

The panels are castellated top and bottom, like Lego, and fit together to form a shuttering system for concrete walls.

The forms are easily cut on site to the construction dimensional requirements, resulting in a system as flexible as traditional construction methods. Wall openings or ducts for service penetrations can be positioned within the formwork before concrete pouring.

• External Wall - Render
• External Wall - Brick Slip
• External Wall - Brick
• Internal Finish
• Internal Walls
• First Floors

---
