Grease Traps Ireland

What makes us different?
We are proud that ALULINE ENVIRONMENTAL Ltd has an excellent repeat business rate. There are a number of reasons why customers keep returning to us.

Knowing what drives our clients:
At Aluline we make a point understanding your business requirements first. By fully grasping what underpins your food service delivery, constraints with cost, staffing, legislation governing waste management and hygiene in different establishments, by keeping in close contact with health and water authorities we deliver solutions that move you closer to your overall business obligations to meet current and future legislation. Provision of staff and management training plus information fact sheets

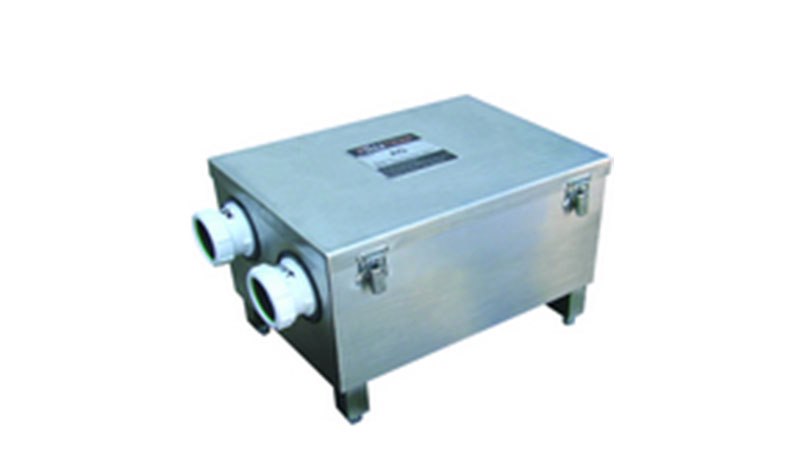

Above Ground Grease Traps for use with Bio-Remediation
The Hygienic device is manufactured in austenitic AISI304 1.5mm Stainless Steel. The air sealed units are designed to be environmentally friendly and to compliment removal at source waste policies. The easy fit lid comes with clips to allow full access for cleaning. A 50mm - 54mm mechanical pipe connection is fitted as standard. Holes through walls for the outlet pipe must be lower than the trap outlet. Care must be taken to ensure stays on catering benches do not obstruct the inlet/outlets.

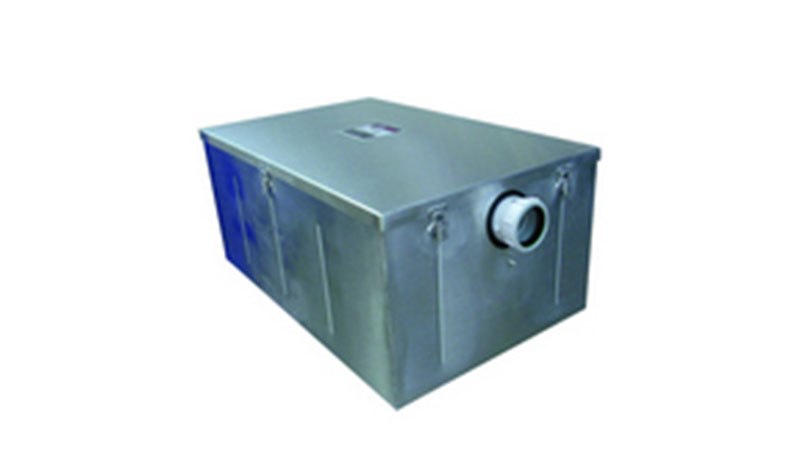

Under Ground Grease Traps
Designed for ease of fitting and efficiency in dealing with grease and organic waste in existing and new locations. Traps may be treated via Aluline's automatic and hygienic Aluzyme® dosing system to eliminate blockage and foul odours, reducing the frequency of regular manual cleaning.
(As a manufacturer Aluline can make Grease Traps to suit any requirements of our clients)

Lint, Hair, Plaster & Starch Separator
Stainless Steel trap sized to suit laundry outflow. This contains a removable Stainless Steel mesh baffle designed to stop fibres from the washing programme entering the drainage system. Available in above and below ground units.

We advise customers to check quantities of detergent used in the laundry programme to ensure minimum discharge of the chemical is achieved. The liquid products used in the dry cleaning process should not enter a drainage system unless approved by water companies and the environment agency.

Oil and Petrol Separators
Use
The Hydrocarbons enter the trap with water.

Operations of the Trap
Hydrocarbons enter the trap with water. They strike the plate and this releases hydrocarbon globules which then float to the surface. Heavier silt and sludge sinks to the bottom of the trap. Most suspended solids will sink to the bottom of the trap as they absorb water and become heavier. The last compartment at the outlet allows only grey water to return to the waste water systems.

Fitting Units
The unit can be fitted into a space 75mm wider than the actual Separator.

Manufactured
Stainless Steel A1S1304 with pedestrian aluminium durbar lid. Screw fixed Stainless Steel screws.
(Heavier duty lids of galvanised mild steel on request).

Adjustments (extra cost in 100mm pedestrian increments)
Increase the T size or invert level to ensure the lid is at the finished ground level and the pipe meets the existing invert datum.

Filters
Specification
The Aluline Coffee Catcher is supplied with a large removable filter membrane (100 micron mesh) to allow the suspension and easy removal of finer solids such as coffee grounds, to prevent blockages in pipe systems. The coffee catcher comes with/without adjustable legs to accommodate the pipe level requirement. Manufactured in austenitic AISI304 1.5mm Stainless Steel.

SOGT Steam Oven Grease Traps
Specification
The Aluline Alutrap® (model SOGT) is designed specifically for combination ovens and steaming ovens to assist in trapping food, oil and grease. A Steam Oven Grease Trap or a floor trapped Stainless Steel gully should be fitted to prevent prevent food, oil and grease from contaminating pipe work.

Specially designed and sized for streaming / convection ovens with either right or left hand side inlets. The Stainless Steel design is a simple and cost effective method of grease removal. Can be used in conjunction with Alubio-Blocks to assist cleaning. Available in both right and left Inlet / Outlet models.

Kitchen Drains
Floor Gullies
Gullies are height adjustable for ease of installation and incorporate removable gratings, odour traps, rodding ports and waste baskets, allowing full bore access. Outlets are vertical or horizontal.

Ideal for Commercial and Industrial Kitchens, Food and Beverage, Chemical, Pharmaceutical Industries, Building Exteriors, Parking Building and Under Ground Garages and more.

---
